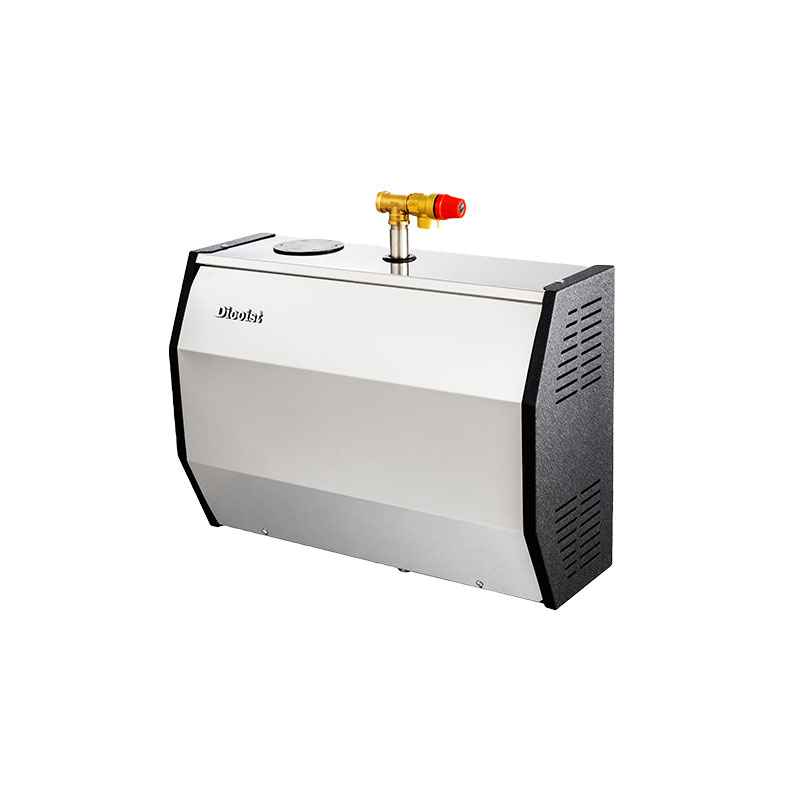

DOD

DO series is the fourth generation model of the Dioo company. It has a fashionable appearance, no welding, perfect performance, high market share, controller DO-50M and upgraded version AT-86.

  1. Working Time setting: 30 minutes to 12 hours
  2. Temperature setting: 25-55℃(95-131℉)
  3. Protection of water shortage
  4. Over-high temperature protection
  5. Over-high pressure protection, prevents tank from expanding, in the case the steam head has been blocked
  6. Light system control
  7. The unique water inlet function, double protection against dry burning
  8. The tank uses 304 stainless steel and corrosion-resistant insulation cotton
  9. Red new steam nozzle which has low noise, beautiful appearance and optional stainless steel mute nozzle.
  10. The wiring method is universal
  11. New strong auto-draining system and auto-back flush, wipe out scale completely, prolonging the service life of the heating element.
  12. Swedish technology standards, UL certification heating tube
  13. Stainless steel shell without welding, LCD touch screen controller.
  14. EU CE, ROHS certification

Share to:

Technical Data

 Model  Power (kw)Room(M3)*Voltage(AC V)Current(A)Specifications for power wireDimensions/mm
DOD -454.5kw3-6200-240V(1PH/2PH)2110AWG or 4.0mm2510×190×490
208V/3PH1311AWG or 2.5mm2
380-415V/3PH714AWG or 1.5mm2
DOD-606kw5-7200-240V(1PH/2PH)289AWG or 6.0mm2
208V/3PH1711AWG or 4.0mm2
380-415V/3PH913AWG or 2.5mm2
DOD-707kw6-8200-240V(1PH/2PH)348AWG or 6.0mm2
208V/3PH2010AWG or 4mm2
380-415V/3PH1112AWG or 2.5mm2
DOD-808kw7-9200-240V(1PH/2PH)377AWG or 10.0mm2
208V/3PH2210AWG or 4.0mm2
380-415V/3PH1212AWG or 2.5mm2
DOD-909kw8-11200-240V(1PH/2PH)417AWG or 10.0mm2
208V/3PH259AWG or 6.0mm2
380-415V/3PH1412AWG or 2.5mm2
DOD-10510.5kw9-13200-240V(1PH/2PH)487AWG or 10.0mm2
208V/3PH298AWG or 6.0mm2
380-415V/3PH1611AWG or 4.0mm2
DOD-12012kw11-15200-240V(1PH/2PH)556AWG or 10.0mm2
208V/3PH338AWG or 6.0mm2
380-415V/3PH1811AWG or 4.0mm2
