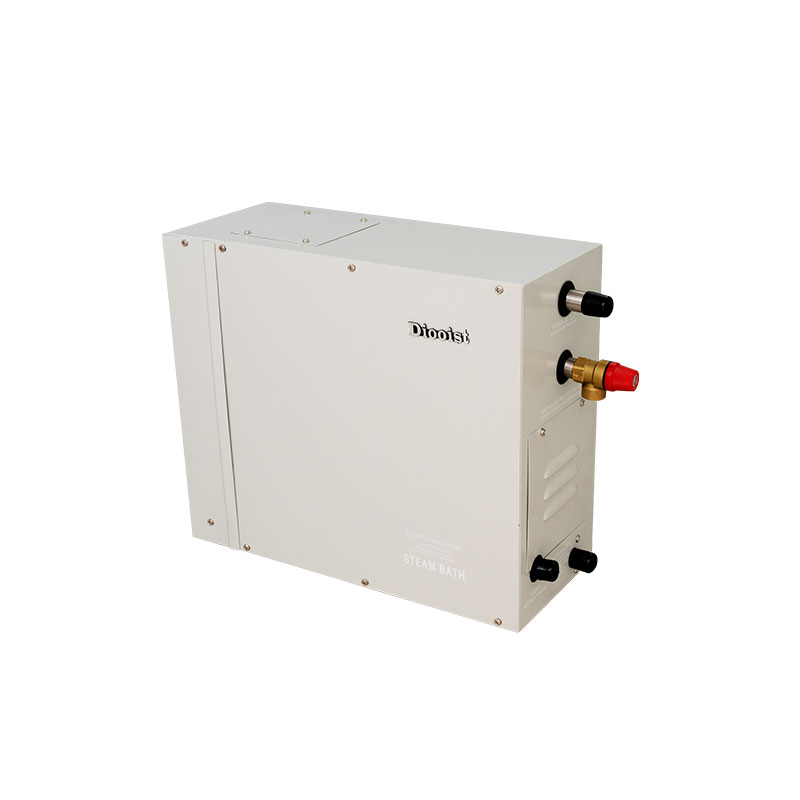

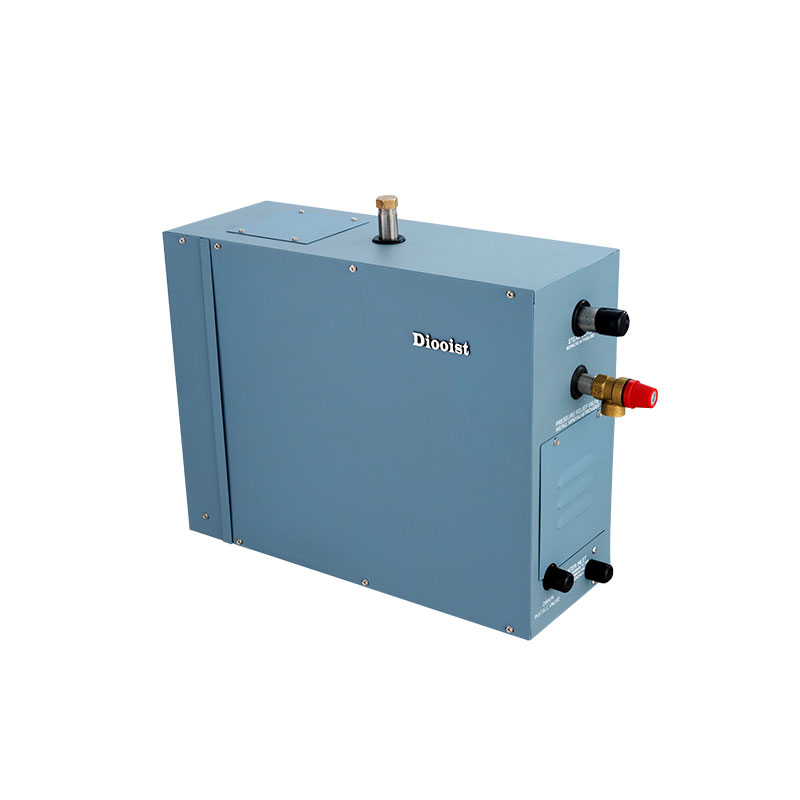

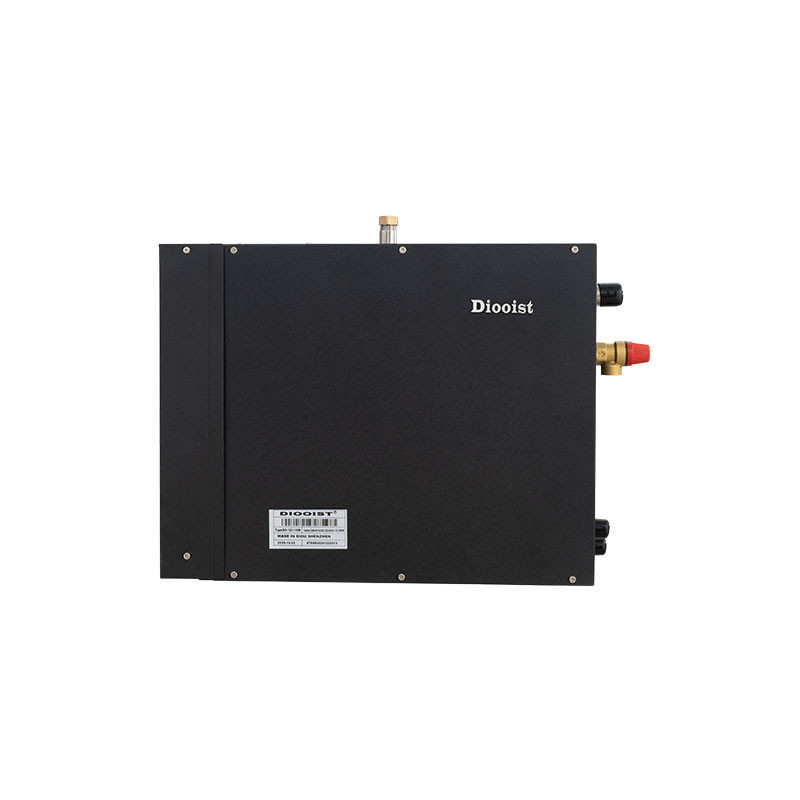

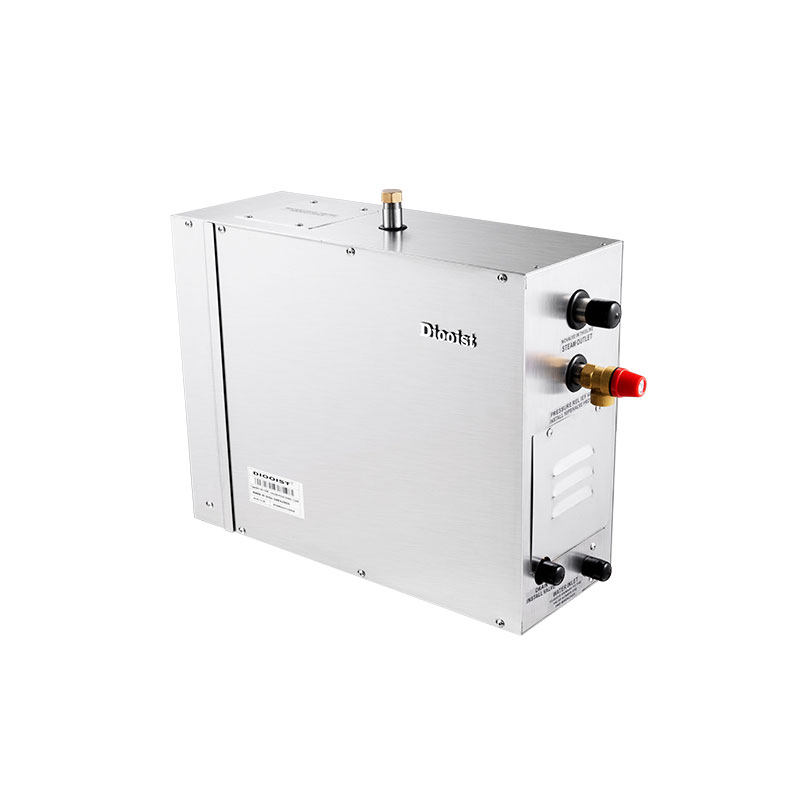

DO Steam Bath Generator Stainless Steel Original

DO

Power(kW)

4.5kW
5.5kW
7kW
8kW
9kW
10.5kW
11kW
15kW
18kW

Color

Gray
Blue
White
Black
Green

Clear

Add to quote

concise appearance and complete functions.Equipped with ST-135M controller,it is very popular in market
1、CE and ROHS certification
2 Timed shutdown 10-60 minutes
3、Automatic constant temperature system,Temperature setting:25-55℃
4、the water tank is fixed
5、The circuit control system is installed on the side to prevent water from splashing out
6、 Protection of water shortage
7、The unique dual protection, water inflow once power on,so that prevent heating element from burning
8、Over-high pressure protection, prevent tank from expanding,in the case steam head has been blocked
9、Light system control of steam room
10、 Water tank material with 304# Stainless Steel and anticorrosion insulation cotton
11、Auto drain valve, prevent user from scald ,enlarge the service life extremely
12、Swedish technical standard，heating tube with UL certification
13、The steam nozzle has the aromatherapy function

Share to:

Technical Data

Model	Power (kw)	Room(M3)*	Voltage(AC V)	Current(A)	Specifications for power wire	Dimensions/mm
DO-45	4.5kw	3-6	200-240V(1PH/2PH)	21	10AWG or 4.0mm2	455×190×380
			208V/3PH	13	11AWG or 2.5mm2
			380-415V/3PH	7	14AWG or 1.5mm2
DO-60	6kw	5-7	200-240V(1PH/2PH)	28	9AWG or 6.0mm2
			208V/3PH	17	11AWG or 4.0mm2
			380-415V/3PH	9	13AWG or 2.5mm2
DO-70	7kw	6-8	200-240V(1PH/2PH)	34	8AWG or 6.0mm2
			208V/3PH	20	10AWG or 4mm2
			380-415V/3PH	11	12AWG or 2.5mm2
DO-80	8kw	7-9	200-240V(1PH/2PH)	37	7AWG or 10.0mm2
			208V/3PH	22	10AWG or 4.0mm2
			380-415V/3PH	12	12AWG or 2.5mm2
DO-90	9kw	8-11	200-240V(1PH/2PH)	41	7AWG or 10.0mm2
			208V/3PH	25	9AWG or 6.0mm2
			380-415V/3PH	14	12AWG or 2.5mm2
DO-105	10.5kw	9-13	200-240V(1PH/2PH)	48	7AWG or 10.0mm2	500×190×390
			208V/3PH	29	8AWG or 6.0mm2
			380-415V/3PH	16	11AWG or 4.0mm2
DO-120	11kw	11-15	200-240V(1PH/2PH)	55	6AWG or 10.0mm2
			208V/3PH	33	8AWG or 6.0mm2
			380-415V/3PH	18	11AWG or 4.0mm2
DO-150	15kw	13-18	200-240V(1PH/2PH)	68	5AWG or 16.0mm2
			208V/3PH	42	7AWG or 10.0mm2
			380-415V/3PH	23	10AWG or 4.0mm2
DO-180	18kw	15-20	200-240V(1PH/2PH)	82	5AWG or 16.0mm2
			208V/3PH	50	6AWG or 10.0mm2
			380-415V/3PH	27	9AWG or 6.0mm2
