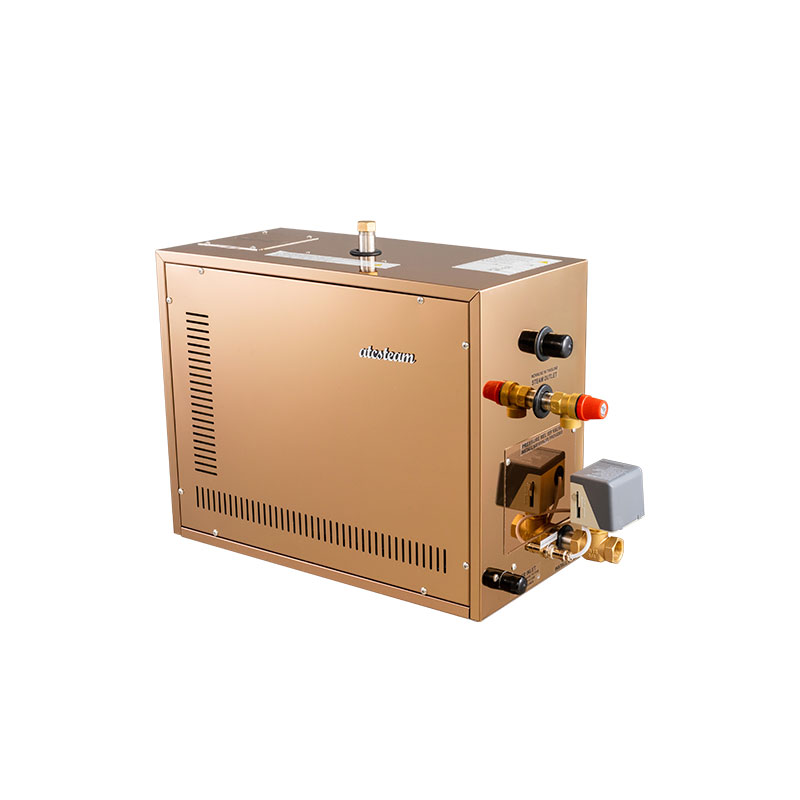

The AT-S series is Dioo’s fifth generation model. Adopting LCD display design, it has reasonable design, stable performance, beautiful appearance and easy installation.
1. Working time setting: 30 minutes to 12 hours
2. Temperature setting: 25-55℃ (95-131°F)
3. Luxurious gold and rose gold color design, more beautiful and elegant
4. Touch button
5.LCD display window
6Fault self-diagnosis prompt function
7. Clean the orifice with descaling agent
8. Water shortage protection
9. Unique water inlet function, double protection against dry burning
10. Stainless steel silent nozzle
11. Lighting system control
12. New powerful automatic drainage system and automatic backwashing
13. Swedish technical standards, UL certified heating tube
14.SUS304 stainless steel water tank
15. The controller adopts 86 bottom box, which is easy to install.
16. Anti-corrosion and descaling electrode
17. EU CE, ROHS certification
| Model | Power (kw) | Room(M3)* | Voltage(AC V) | Current(A) | Specifications for power wire | Size/mm | DIM(mm)/kg | conrtroller |
| AT-30S | 3kw | 2-3 | 200-240V(1PH/2PH) | 15 | 11AWG or 4.0mm2 | 350*180*240 | 415*210*350/8.1 | AT-86 |
| AT -45S | 4.5kw | 3-6 | 200-240V(1PH/2PH) | 21 | 10AWG or 4.0mm2 | 450*200*320 | 570*250*430/12 | |
| 208V/3PH | 13 | 11AWG or 2.5mm2 | ||||||
| 380-415V/3PH | 7 | 14AWG or 1.5mm2 | ||||||
| AT-60S | 6kw | 5-7 | 200-240V(1PH/2PH) | 28 | 9AWG or 6.0mm2 | 450*200*320 | 43*18.5*54.5/9.6 | |
| 208V/3PH | 17 | 11AWG or 4.0mm2 | ||||||
| 380-415V/3PH | 9 | 13AWG or 2.5mm2 | ||||||
| AT-70S | 7kw | 6-8 | 200-240V(1PH/2PH) | 34 | 8AWG or 6.0mm2 | 445×165×395 | 43*20*59/10.8 | |
| 208V/3PH | 20 | 10AWG or 4mm2 | ||||||
| 380-415V/3PH | 11 | 12AWG or 2.5mm2 | ||||||
| AT-80S | 8kw | 7-9 | 200-240V(1PH/2PH) | 37 | 7AWG or 10.0mm2 | |||
| 208V/3PH | 22 | 10AWG or 4.0mm2 | ||||||
| 380-415V/3PH | 12 | 12AWG or 2.5mm2 | ||||||
| AT-90S | 9kw | 8-11 | 200-240V(1PH/2PH) | 41 | 7AWG or 10.0mm2 | |||
| 208V/3PH | 25 | 9AWG or 6.0mm2 | ||||||
| 380-415V/3PH | 14 | 12AWG or 2.5mm2 | ||||||
| AT-105S | 10.5kw | 9-13 | 200-240V(1PH/2PH) | 48 | 7AWG or 10.0mm2 | 500×200×520 | 56*25*62/17.1 | |
| 208V/3PH | 29 | 8AWG or 6.0mm2 | ||||||
| 380-415V/3PH | 16 | 11AWG or 4.0mm2 | ||||||
| AT-120S | 12kw | 11-15 | 200-240V(1PH/2PH) | 55 | 6AWG or 10.0mm2 | |||
| 208V/3PH | 33 | 8AWG or 6.0mm2 | ||||||
| 380-415V/3PH | 18 | 11AWG or 4.0mm2 | ||||||
| AT-150S | 15kw | 13-18 | 200-240V(1PH/2PH) | 68 | 5AWG or 16.0mm2 | |||
| 208V/3PH | 42 | 7AWG or 10.0mm2 | ||||||
| 380-415V/3PH | 23 | 10AWG or 4.0mm2 | ||||||
| AT-180S | 18kw | 15-20 | 200-240V(1PH/2PH) | 82 | 5AWG or 16.0mm2 | 56*25*62/17.5 | ||
| 208V/3PH | 50 | 6AWG or 10.0mm2 | ||||||
| 380-415V/3PH | 27 | 9AWG or 6.0mm2 | ||||||
| AT-210S | 21kw | 18-24 | 200-240V(1PH/2PH) | 95 | 3AWG or 25.0mm2 | |||
| 208V/3PH | 58 | 7AWG or 10.0mm2 | ||||||
| 380-415V/3PH | 32 | 8AWG or 6.0mm2 |
