AT-B

Power(kW)

3 kW
4.5 kW
6 kW
7 kW
8 kW
9 kW
10.5 KW
12 KW
15 KW
18 KW
21 KW

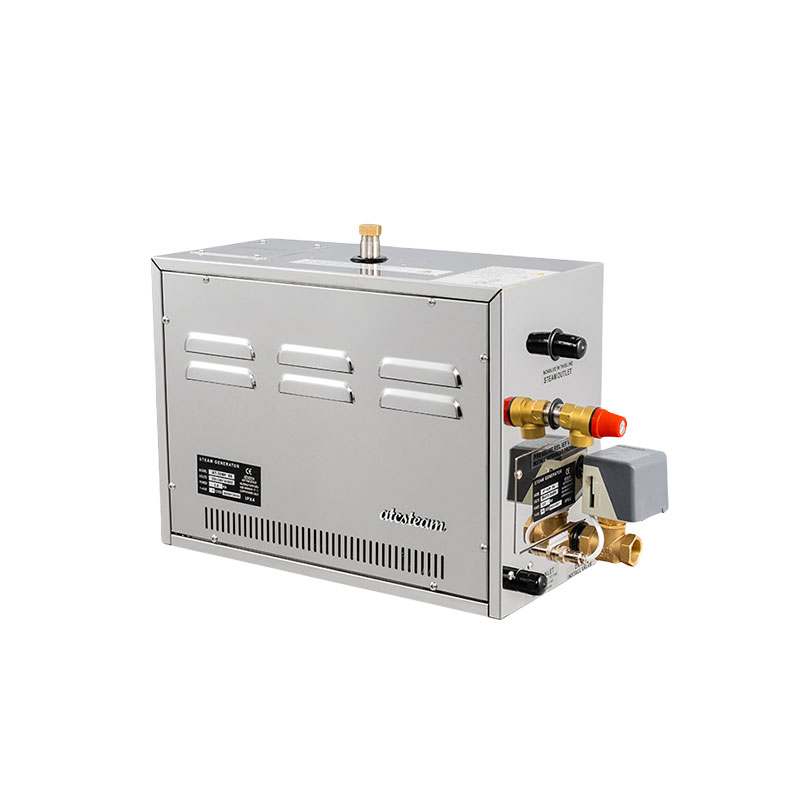

AT series is the fifth generation model of the Dioo company. It is designed with a liquid crystal display screen, with reasonable design, stable performance, beautiful appearance and convenient installation.

Working Time setting: 30 minutes to12 hours
Temperature setting: 25-55℃（95-131℉）
Luxury gold color and rose gold color design, more beautiful and generous
Touch button
LCD display window
Fault self-diagnosis prompt function
Descaling agent cleaning orifice
Protection of water shortage
The unique water inlet function, double protection against dry burning
Stainless steel mute nozzle
Light system control
New strong auto-draining system and auto-back flush
Swedish technology standards, UL certification heating tube
SUS304 stainless steel tank
The controller uses 86 bottom box, easy to install

Share to:

Technical Data

Model	Power (kw)	Room(M3)*	Voltage(AC V)	Current(A)	Specifications for power wire	Dimensions/mm/KG
AT-30B	3kw	2-3	200-240V(1PH/2PH)	15	11AWG or 4.0mm2	350×180×240/9KG
AT -45B	4.5kw	3-6	200-240V(1PH/2PH)	21	10AWG or 4.0mm2	450×200×320/14KG
			208V/3PH	13	11AWG or 2.5mm2
			380-415V/3PH	7	14AWG or 1.5mm2
AT-60B	6kw	5-7	200-240V(1PH/2PH)	28	9AWG or 6.0mm2
			208V/3PH	17	11AWG or 4.0mm2
			380-415V/3PH	9	13AWG or 2.5mm2
AT-70B	7kw	6-8	200-240V(1PH/2PH)	34	8AWG or 6.0mm2
			208V/3PH	20	10AWG or 4mm2
			380-415V/3PH	11	12AWG or 2.5mm2
AT-80B	8kw	7-9	200-240V(1PH/2PH)	37	7AWG or 10.0mm2
			208V/3PH	22	10AWG or 4.0mm2
			380-415V/3PH	12	12AWG or 2.5mm2
AT-90B	9kw	8-11	200-240V(1PH/2PH)	41	7AWG or 10.0mm2
			208V/3PH	25	9AWG or 6.0mm2
			380-415V/3PH	14	12AWG or 2.5mm2
AT-105B	10.5kw	9-13	200-240V(1PH/2PH)	48	7AWG or 10.0mm2	500×240×395/19KG
			208V/3PH	29	8AWG or 6.0mm2
			380-415V/3PH	16	11AWG or 4.0mm2
AT-120B	12kw	11-15	200-240V(1PH/2PH)	55	6AWG or 10.0mm2
			208V/3PH	33	8AWG or 6.0mm2
			380-415V/3PH	18	11AWG or 4.0mm2
AT-150B	15kw	13-18	200-240V(1PH/2PH)	68	5AWG or 16.0mm2
			208V/3PH	42	7AWG or 10.0mm2
			380-415V/3PH	23	10AWG or 4.0mm2
AT-180B	18kw	15-20	200-240V(1PH/2PH)	82	5AWG or 16.0mm2
			208V/3PH	50	6AWG or 10.0mm2
			380-415V/3PH	27	9AWG or 6.0mm2
AT-210B	21kw	18-24	200-240V(1PH/2PH)	95	3AWG or 25.0mm2
			208V/3PH	58	7AWG or 10.0mm2
			380-415V/3PH	32	8AWG or 6.0mm2
